ANVER C-F Flat Vacuum Cups

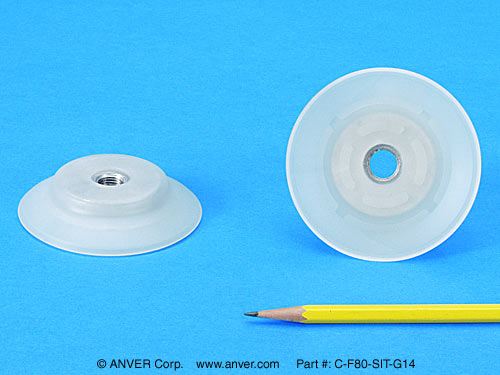

Part Number: C-F80-SIT-G14

C-F80-SIT-G14

3D Content Central TraceParts Vacuum

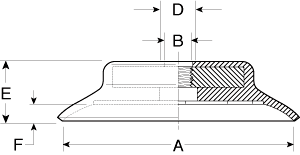

Cup No.
øA
Flared Overall
Dia.
in.
(mm)
B
in.
(mm)
C
in.
(mm)
D
in.
(mm)
E
Static
Height
in.
(mm)
F
in.
(mm)
G
in.
(mm)
H
in.
(mm)
J
in.
(mm)

Load
Capacity*


2 to 1

Adapter
Fitting
for Suspension
(Click on Image for More Info)
SLSA3
Series
Suspension
(Click on Image
for Larger Image; More Info)

  3D C-F80-SIT-G14

PFG80-SIT-G14

3.3
(83.8)
G1/4"
female
- 0.79
(12.5)
0.71
(18)
0.24
(6.0)
- - -

28 lbs
(12.7 Kg)

Click Here to See More Details of Different Suction Cup and Vacuum Cup Materials
